Nodes

The Nodes page lists every K8s node in the cluster with the metadata operators read at 11pm — instance type, zone, capacity-type (spot vs on-demand), kubelet version, schedulability, and a status glyph. Pairs with the Node Groups EKS-side surface, which lists the AWS-managed group abstraction above individual nodes.

---

What you see

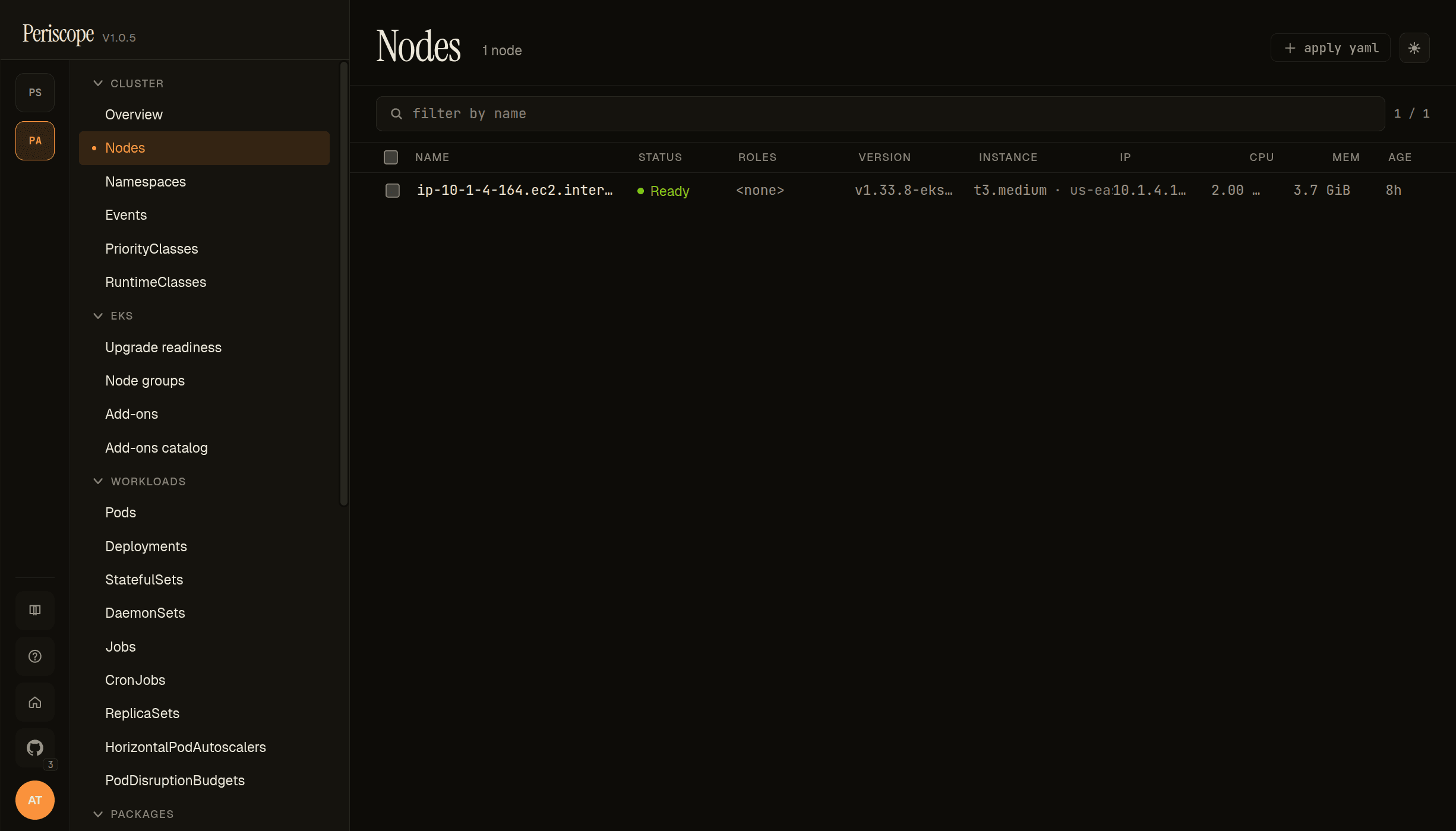

List

Each row carries:

• Status glyph — ● Ready (green), ✕ NotReady (red), ○ Unknown (grey, animated). A cordoned overlay renders when the node has spec.unschedulable=true.
• Roles — extracted from labels with the node-role.kubernetes.io/<role> prefix. Most EKS-managed nodes show no role; control-plane nodes (rare in EKS user clusters) show control-plane.
• Instance — combined column showing instance type + zone
  • an optional spot chip when the node carries eks.amazonaws.com/capacityType=SPOT (or karpenter.sh/capacity-type=spot). The spot chip renders yellow to surface "this node can be reclaimed at 2-min notice" — answers the "why did my pod die overnight" question at scroll glance.
• Kubelet version — from node.status.nodeInfo.kubeletVersion.
• Internal IP — node.status.addresses[type=InternalIP].
• CPU / mem capacity — from node.status.capacity.
• Age — relative (e.g. 4h, 2d).

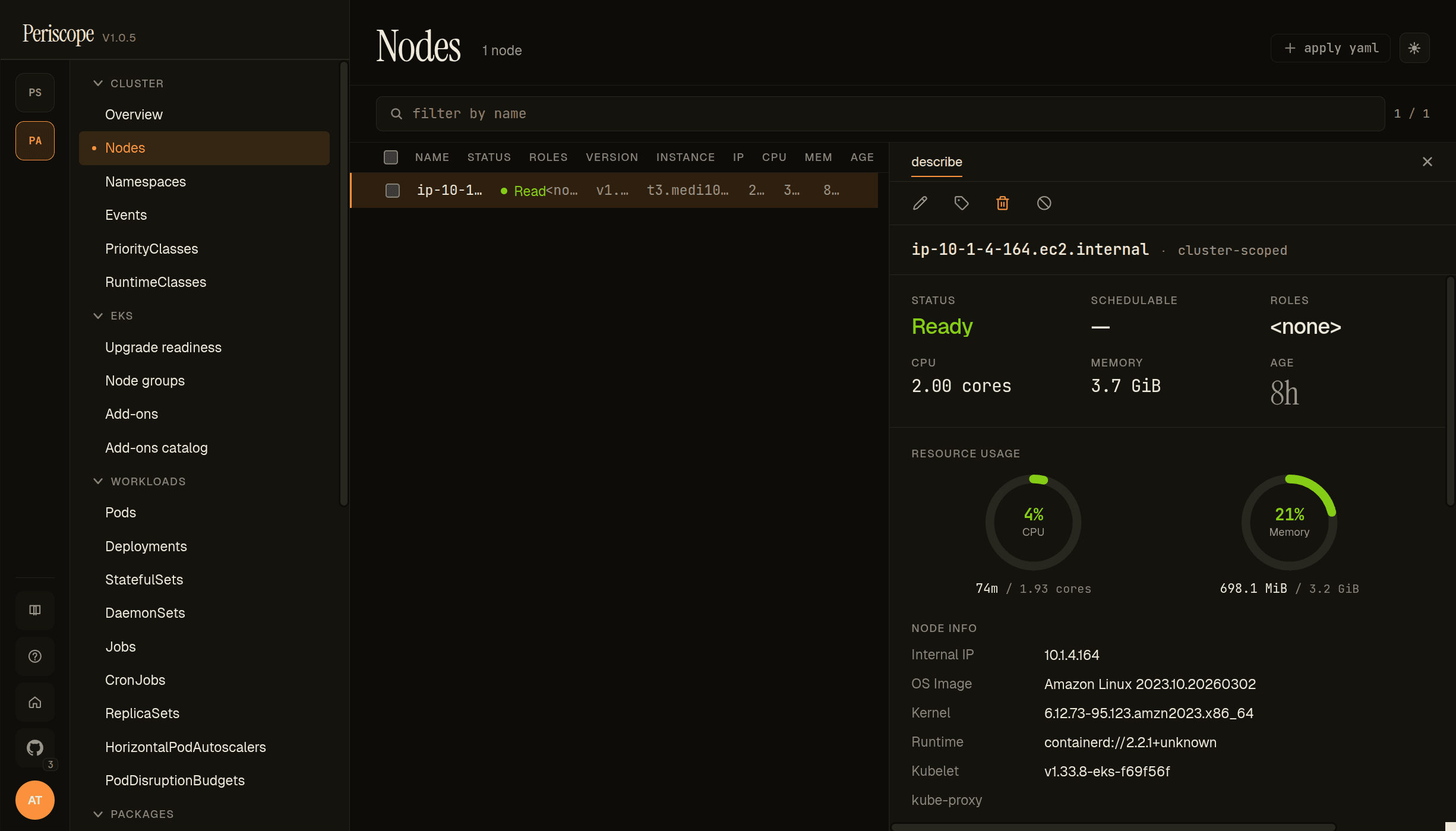

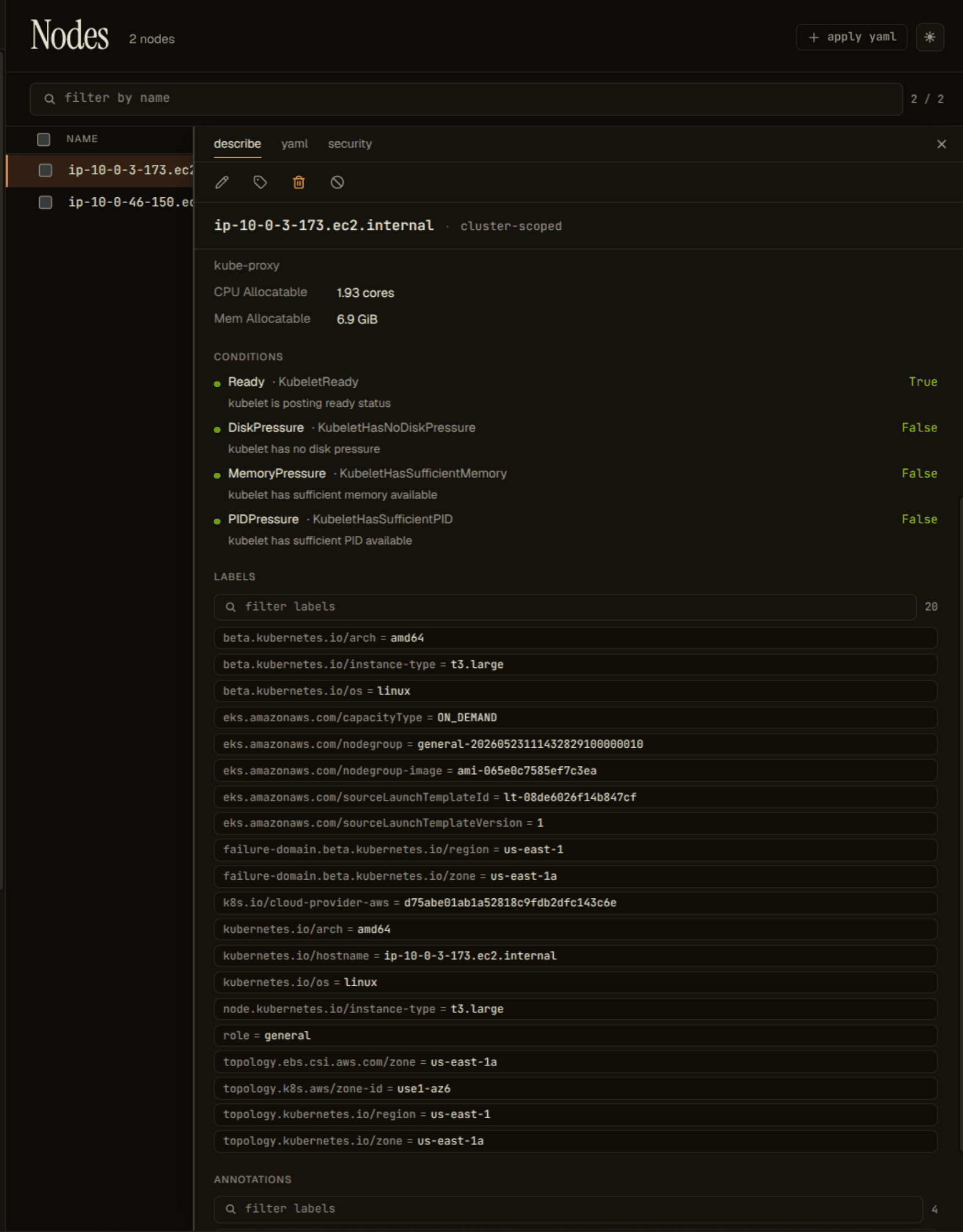

Detail

Clicking a row opens the detail pane. Tabs:

• Describe — kubectl-describe-style summary: conditions, taints, allocated resources, system info, addresses, labels, annotations.
• YAML — full node manifest, monaco-editor read-only view.
• Events — events filtered to this node (eviction, OOMKilled on hosted pods, etc).

---

Capacity-type detection

Periscope reads two label families and surfaces whichever is present:

Both lowercase + uppercase forms are normalized to the chip. Nodes with neither label (self-managed, raw EC2, kops, etc) leave the chip slot blank — no false signal.

---

RBAC

The page needs nodes:list cluster-scoped (the standard view / read ClusterRole carries this). When node access restricted shows in the cluster overview identity banner, this page renders an empty state with the same message — denoting the difference between "cluster has no nodes" and "your role can't see them."
