EKS managed add-ons

Periscope ships a read + write surface for EKS managed add-ons — list installed add-ons with version drift, browse the AWS-published catalog, and install / upgrade / delete add-ons from the SPA. Pairs with eks-upgrade-readiness.md: the Insights page tells you which add-ons block your next K8s minor; the Add-ons page is where you act on it.

The surface is EKS-only — see the same backend-independence rule as upgrade readiness (same caveats): on any registered cluster with arn + region set, regardless of the K8s auth backend.

What you see

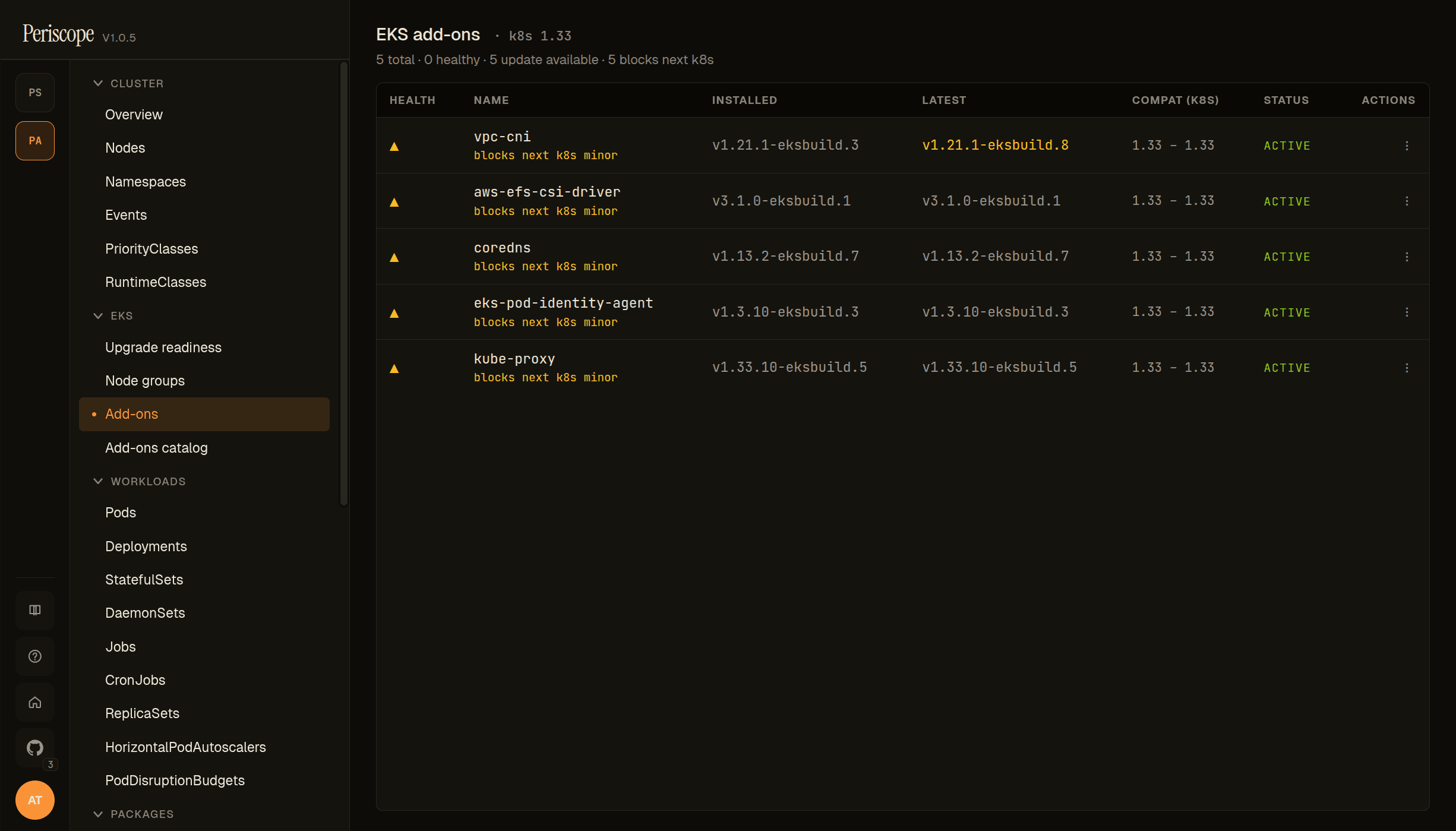

Installed add-ons (with drift)

Each row carries a HEALTH glyph (yellow triangle when AWS-published health.issues[] are non-empty, OR when the addon blocks the next K8s minor), the NAME with an optional blocks next k8s minor sub-label, the INSTALLED version, the LATEST AWS-published version compatible with the cluster's K8s, the COMPAT (k8s) range AWS supports for the installed version, the STATUS (ACTIVE, CREATING, UPDATING, DEGRADED, DELETING), and a per-row ACTIONS menu (upgrade / delete). When the INSTALLED version differs from LATEST, both cells render in the warning palette so drift is visible at scroll glance.

Click an addon row to open the detail pane: full version history, configuration values, IAM service-account role ARN, and the Upgrade / Delete actions.

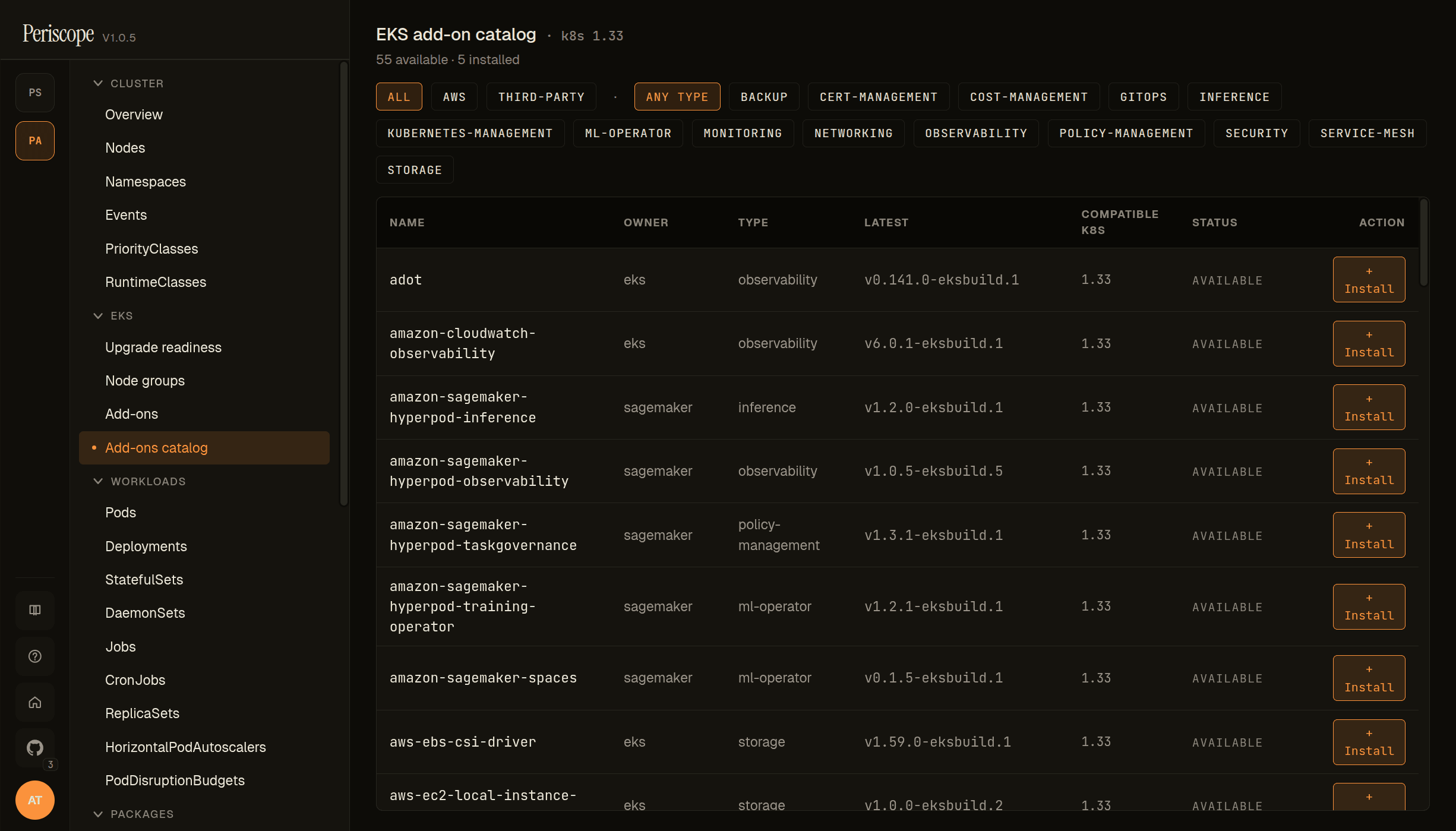

Catalog browser

The + Install add-on action opens the catalog browser. It lists every add-on AWS publishes for the cluster's K8s version — both AWS-built (vpc-cni, coredns, kube-proxy, eks-pod-identity-agent, aws-ebs-csi-driver, aws-efs-csi-driver) and partner add-ons (adot, external-dns, etc). Each entry shows the publisher (amazon / kubernetes / partner name), type (networking, storage, observability, security), and the default version AWS would install.

Pick an addon, choose a version (defaults to the latest compatible), optionally provide a Service-Account-bound IAM role for addons that need AWS credentials (e.g. EBS CSI), and install. Periscope fires eks:CreateAddon and shows the new row in the installed list with status=CREATING; the row updates live as AWS provisions.

IAM permissions

Read-only and write actions split into two policy statements so a read-only deployment can scope down by removing the second:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "EKSAddonsRead",
      "Effect": "Allow",
      "Action": [
        "eks:ListAddons",
        "eks:DescribeAddon",
        "eks:DescribeAddonVersions",
        "eks:DescribeAddonConfiguration"
      ],
      "Resource": "*"
    },
    {
      "Sid": "EKSAddonsWrite",
      "Effect": "Allow",
      "Action": [
        "eks:CreateAddon",
        "eks:UpdateAddon",
        "eks:DeleteAddon"
      ],
      "Resource": [
        "arn:aws:eks:*:*:addon/*/*/*",
        "arn:aws:eks:*:*:cluster/*"
      ]
    }
  ]
}

EKSAddonsRead covers the list, detail, and catalog views. Drop EKSAddonsWrite if you want a read-only deployment — the Upgrade / Delete / + Install add-on buttons render disabled with a hover hint.

If an add-on uses a service-account role (Pod Identity or IRSA), the operator-supplied role ARN is passed verbatim to eks:CreateAddon; Periscope's own role does not need iam:PassRole because CreateAddon is the trust-policy holder, not Periscope.

Async operations

CreateAddon and UpdateAddon return 202 immediately and AWS processes asynchronously. The SPA polls the affected row every 4 seconds while status=CREATING|UPDATING|DELETING, switching back to the standard 30-second cadence once the row settles to ACTIVE or a terminal state. No spinning in your tab while AWS rolls a DaemonSet across nodes — Periscope's status-aware refetch keeps the view live without you reloading.

Audit trail

Every read and write emits an audit row:

The mutation rows include the addon name, target version, IAM role ARN (when supplied), and the AWS update ID returned by CreateAddon / UpdateAddon for cross-referencing in CloudTrail.

Related docs

• eks-upgrade-readiness.md — companion surface; insights + node-group AMI drift.
• audit.md — audit log shape and retention.
• cluster-rbac.md — tier-mode mapping that controls which operators can use the write actions.
